Spacing
Our spacing model is grounded in both math and visual psychology. We achieve rhythm and hierarchy by grouping related elements, and building an appropriate distance between elements that are less closely related. Focus on optimizing screen real estate and prioritizing white space.
Spacing concepts

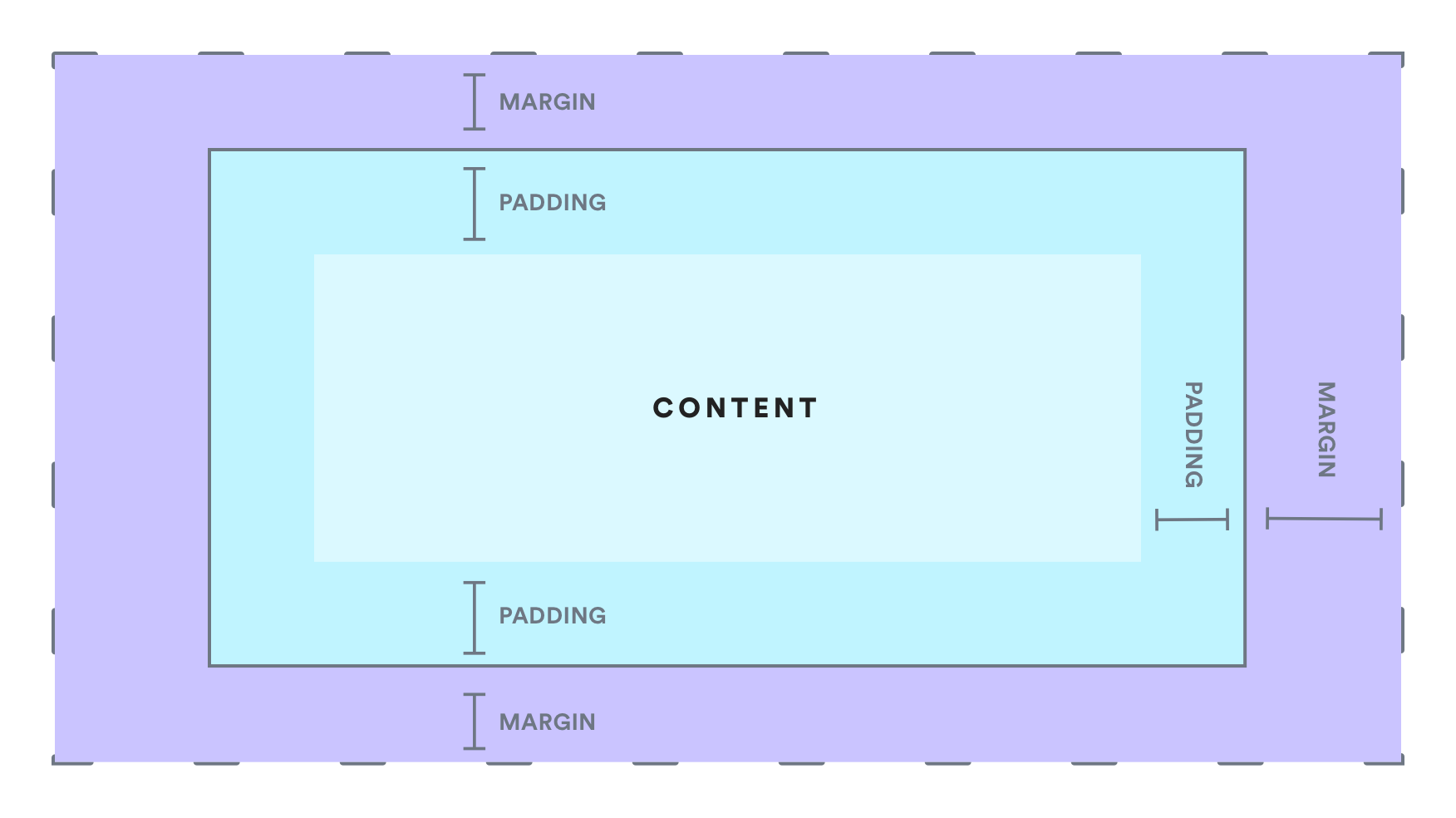

Box model
All HTML elements can be considered boxes. Based off of the HTML foundational box model.
Margin

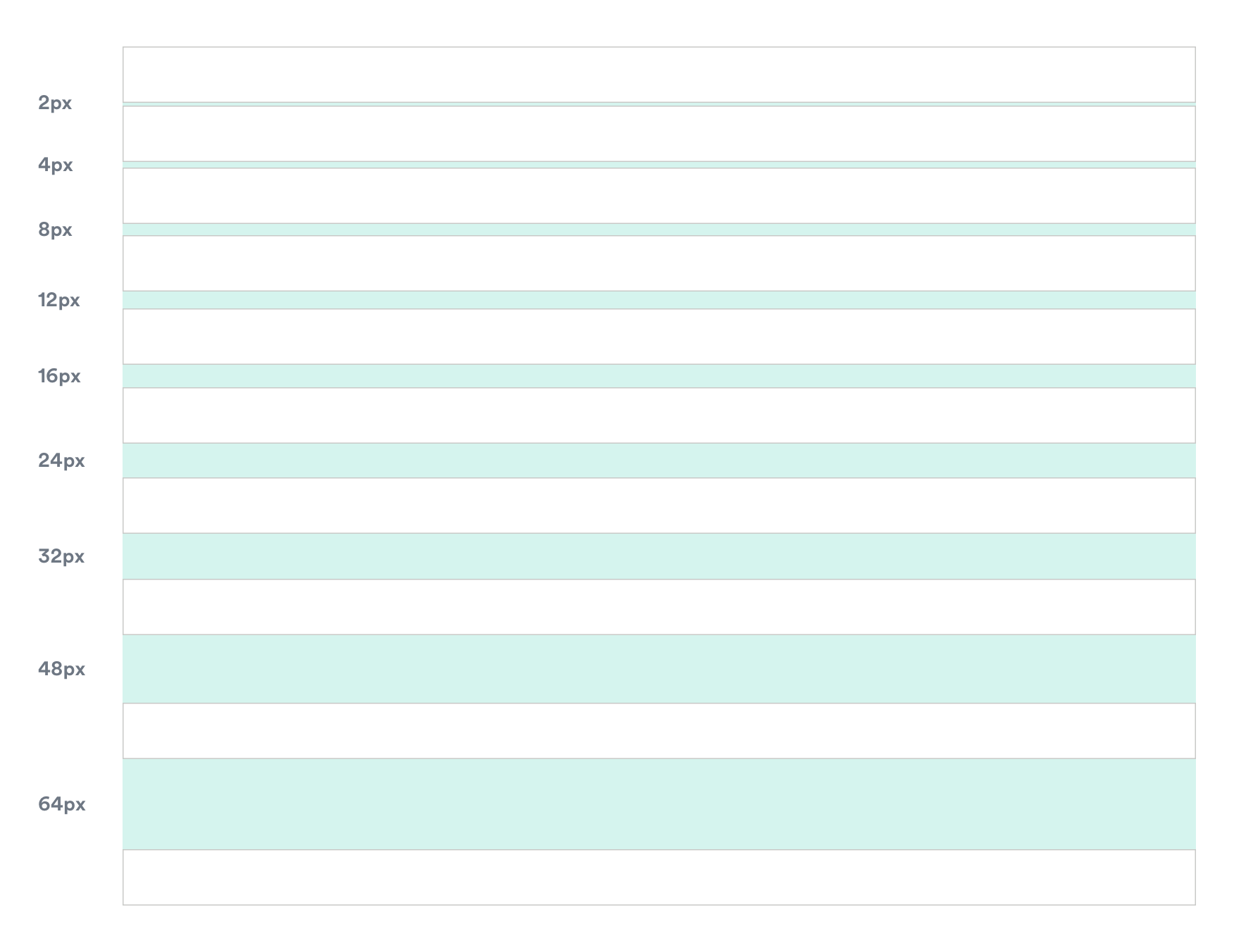

Vertical - The vertical space between items

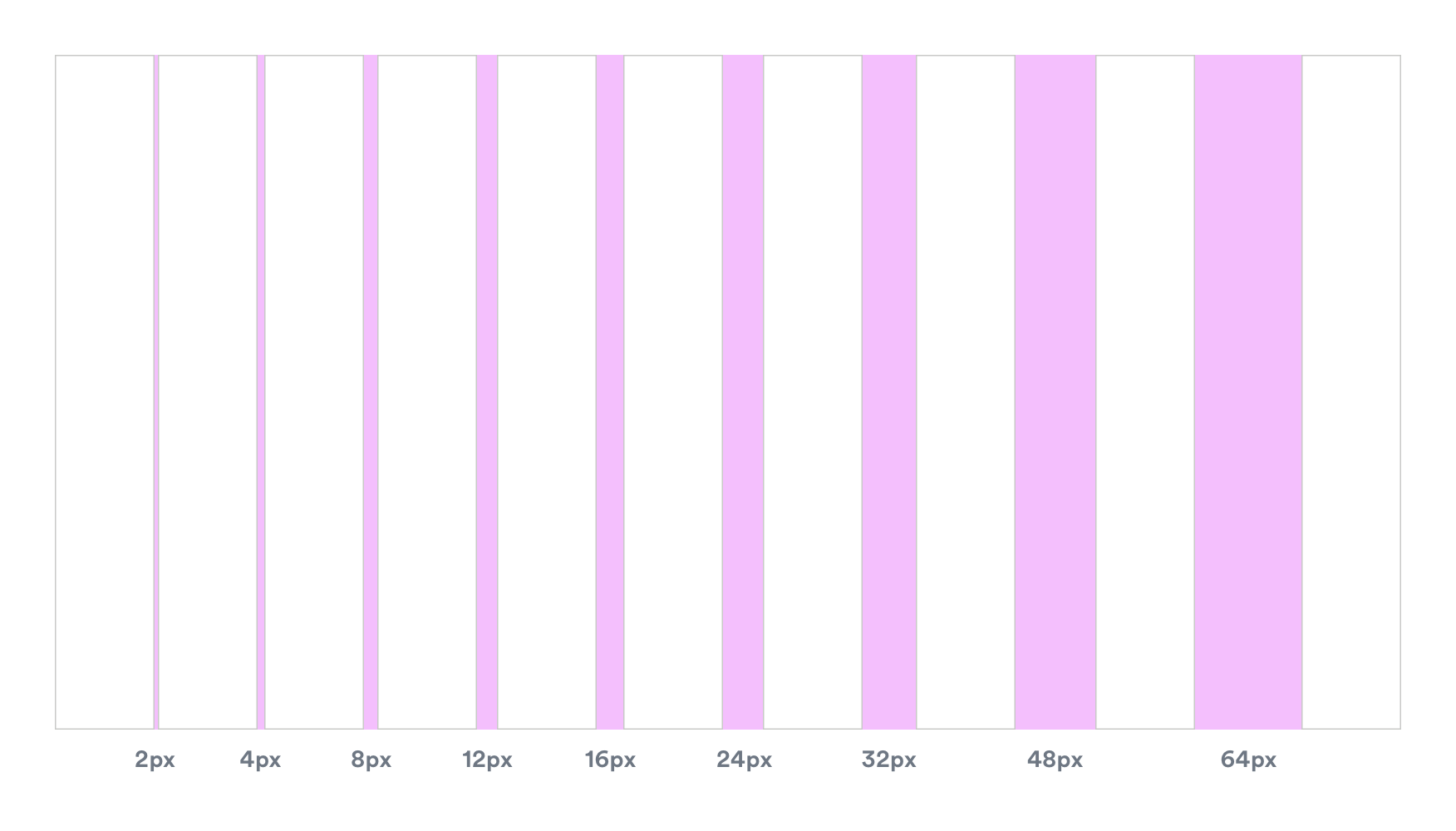

Horizontal - The horizontal space between items
| Spacing | Size measurement | Token Variable |
|---|---|---|
| 0 | none | var(--auro-size-none) |
| 2px | xxxs | var(--auro-size-xxxs) |
| 4px | xxs | var(--auro-size-xxs) |
| 8px | xs | var(--auro-size-xs) |
| 12px | sm | var(--auro-size-sm) |
| 16px | md | var(--auro-size-md) |
| 24px | lg | var(--auro-size-lg) |
| 32px | xl | var(--auro-size-xl) |
| 48px | xxl | var(--auro-size-xxl) |
| 64px | xxxl | var(--auro-size-xxxl) |
Inset padding

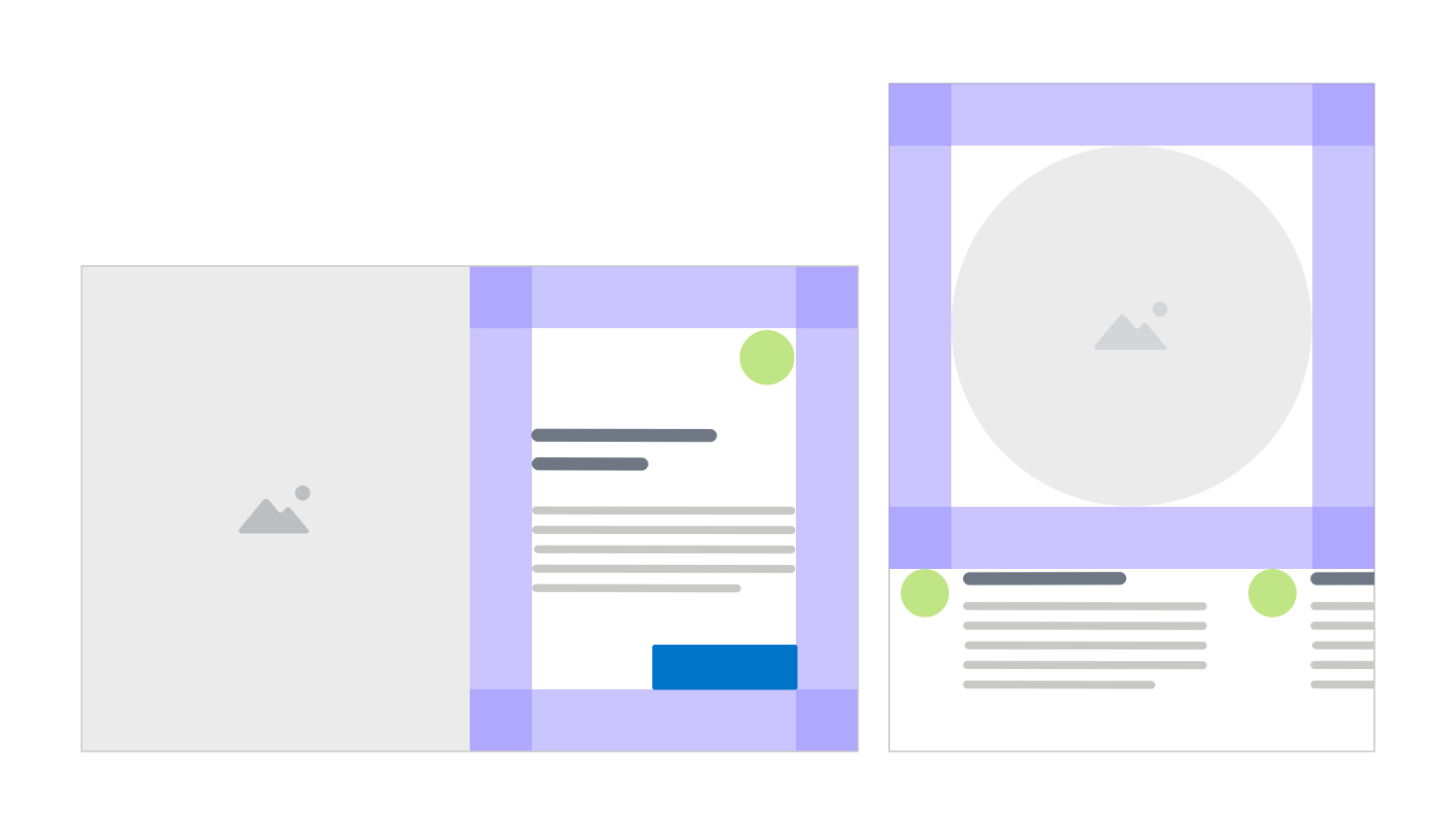

Default – The padding around an element where all sides are equal
| Spacing (t/b l/r) | Selector |
|---|---|
| 2px / 2px | .util_insetXxxs |
| 4px / 4px | .util_insetXxs |
| 8px / 8px | .util_insetXs |
| 12px / 12px | .util_insetSm |
| 16px / 16px | .util_insetMd |
| 24px / 24px | .util_insetLg |
| 32px / 32px | .util_insetXl |
| 48px / 48px | .util_insetXxl |
| 64px / 64px | .util_insetXxxl |

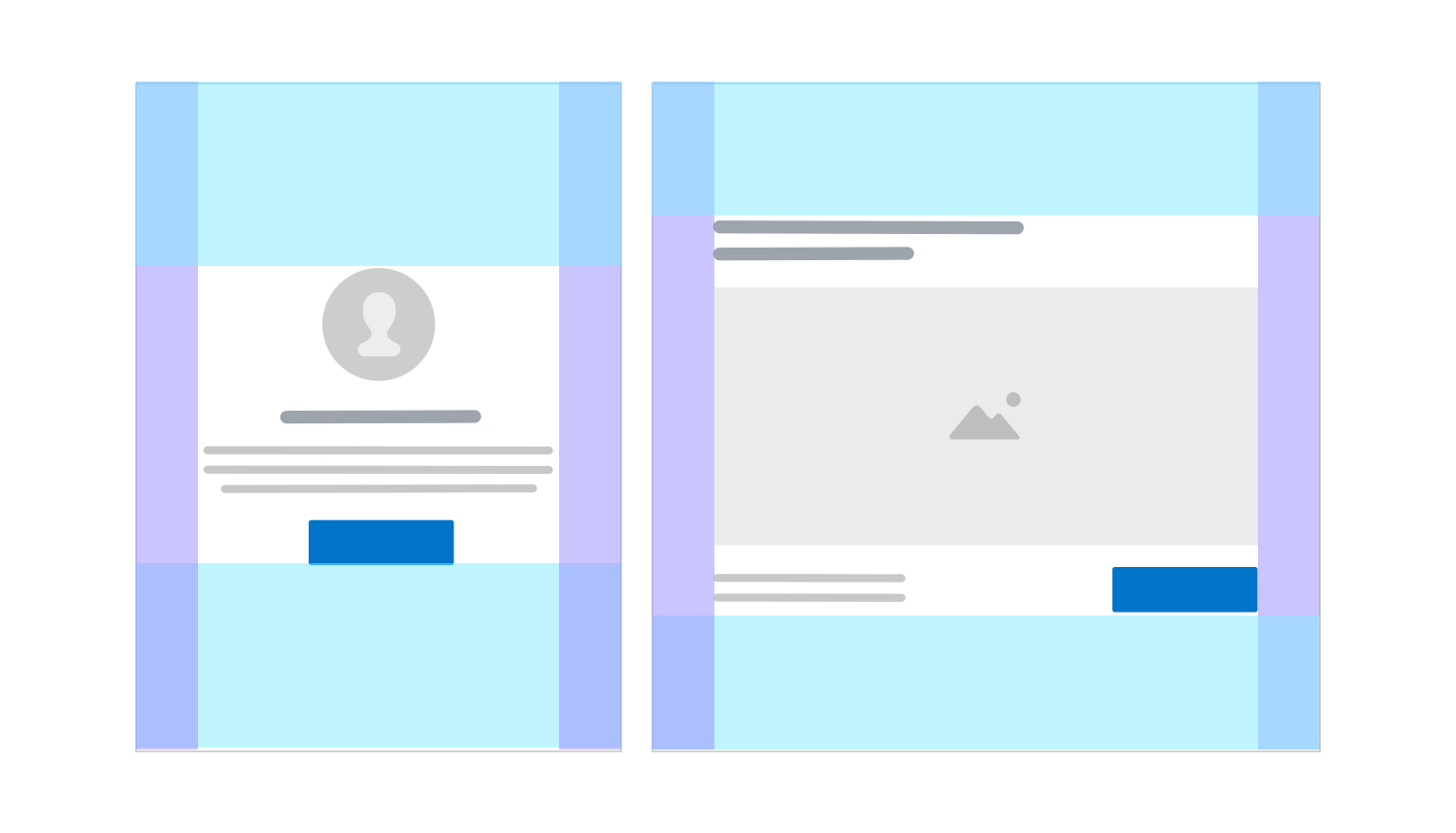

Stretch – Increased padding above and below an element; the top and bottom are 50% more than the left and right sides
| Spacing (t/b l/r) | Selector |
|---|---|
| 4px / 2px | .util_insetXxxs--stretch |
| 6px / 4px | .util_insetXxs--stretch |
| 12px / 8px | .util_insetXs--stretch |
| 18px / 12px | .util_insetSm--stretch |
| 24px / 16px | .util_insetMd--stretch |
| 36px / 24px | .util_insetLg--stretch |
| 48px / 32px | .util_insetXl--stretch |
| 72px / 48px | .util_insetXxl--stretch |

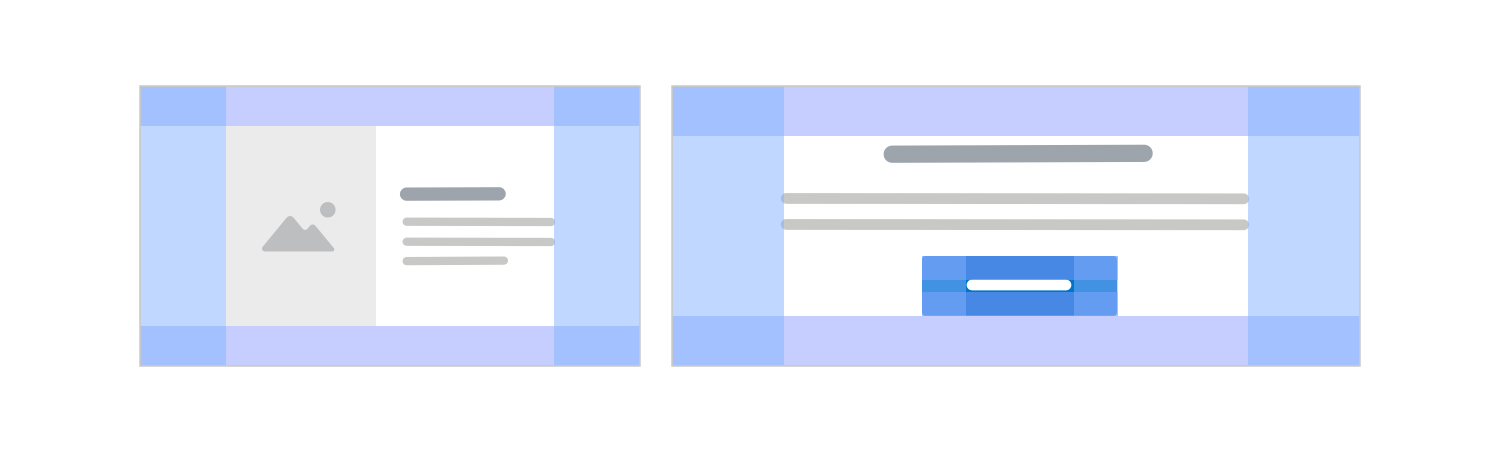

Squish – Increased padding to left and right of an element; the left and right sides are 50% more than the top and bottom sides.
| Spacing (t/b l/r) | Selector |
|---|---|
| 0px / 2px | .util_insetXxxs--squish |
| 2px / 4px | .util_insetXxs--squish |
| 4px / 8px | .util_insetXs--squish |
| 6px / 12px | .util_insetSm--squish |
| 8px / 16px | .util_insetMd--squish |
| 12px / 24px | .util_insetLg--squish |
| 16px / 32px | .util_insetXl--squish |
| 24px / 48px | .util_insetXxl--squish |
| 32px / 64px | .util_insetXxxl--squish |
